MFOG-091A Micro-Nano Fiber Optic Gyroscope — Compact, accurate, and robust.
It adopts Sagnac-based micro-nano fiber technology, offering bias stability ≤2°/h, ARW ≤0.04°/√h, and ±300°/s range.
Operating from -40°C to +70°C, the gyroscope features φ24×51.6mm dimensions, ≤30g weight, and power ≤0.7W.
A full-performance substitute for Fizoptika VG091, suitable for UAVs,navigation modules, and robotic systems.

Composition

The product is mainly composed of the following components:

A) an optical path assembly;

B) Detection and control signal circuit board;

C) Optical fiber ring skeleton, shell and other structural parts;

4.3 Appearance and dimension

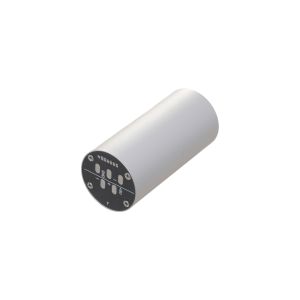

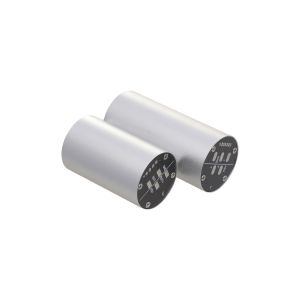

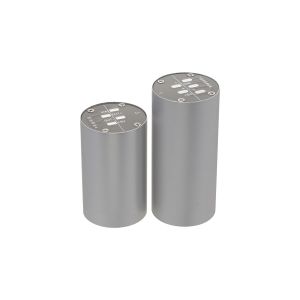

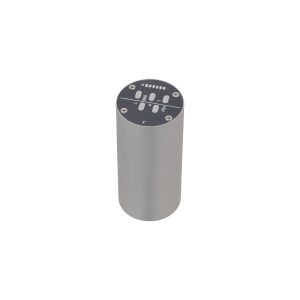

The product is cylindrical, with overall dimensions of φ24mm × 51.6mm

4.4 Weight

≤30g.

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

4.8 Main performance parameters

Table 1 Main Performance Parameters

4.9 Mechanical and electrical interfaces

4.9.1 Mechanical interface

The cylindrical surface of the product is the installation surface, and the clamp is used for installation.

4.9.2 Power Requirements

The external power supply to the product has one circuit, and the requirements are shown in Table 2:

Table 2 External Power Supply Requirements

4.9.3 Electrical interface

The MFOG-091A micro-nano fiber optic gyroscope is electrically connected to the outside through the bonding pad.

It is defined as follows:

Table 3 MFOG-091A Node Definition

Output impedance 1 kΩ, differential analog voltage output.

Figure 2 Node Definition
