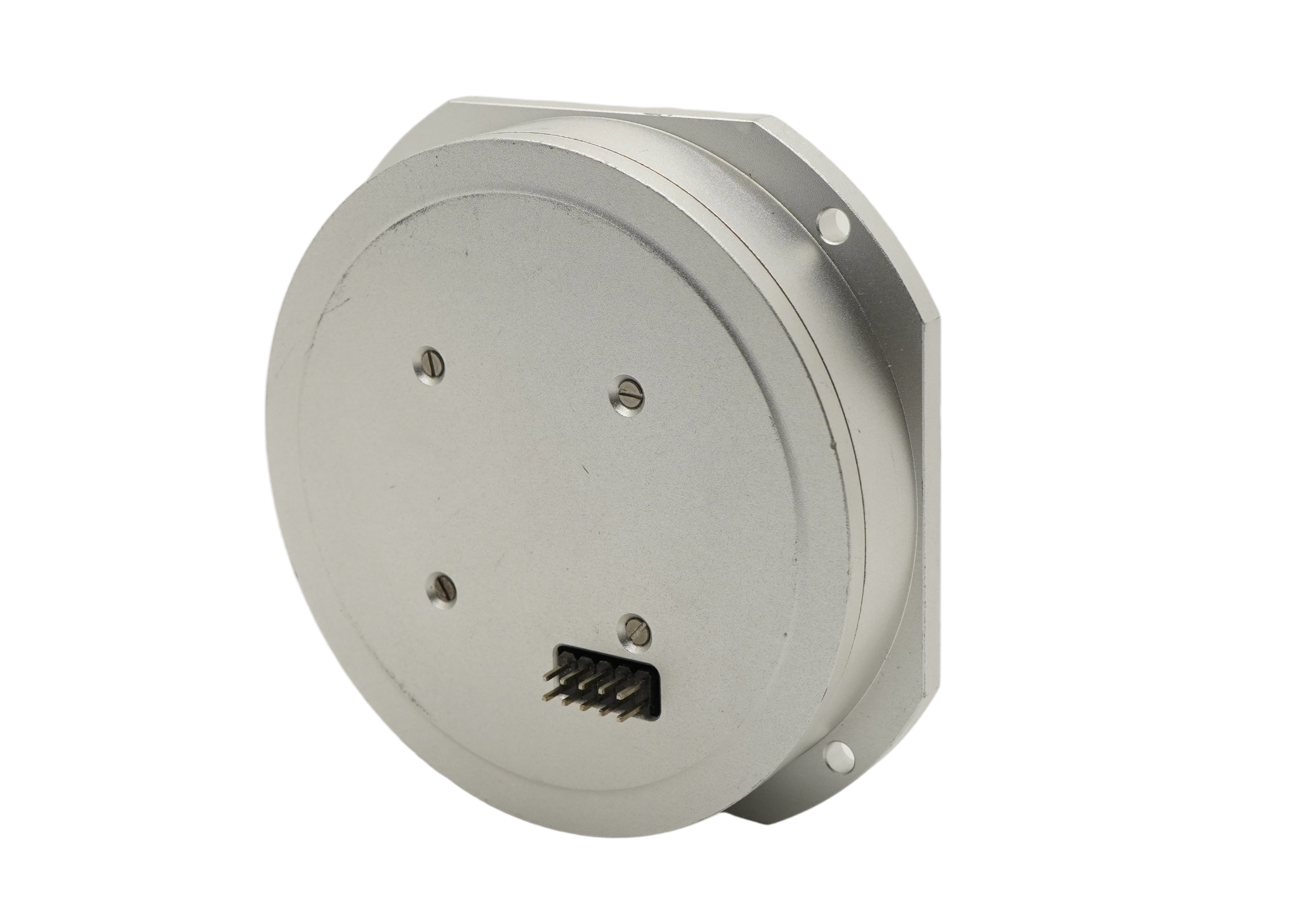

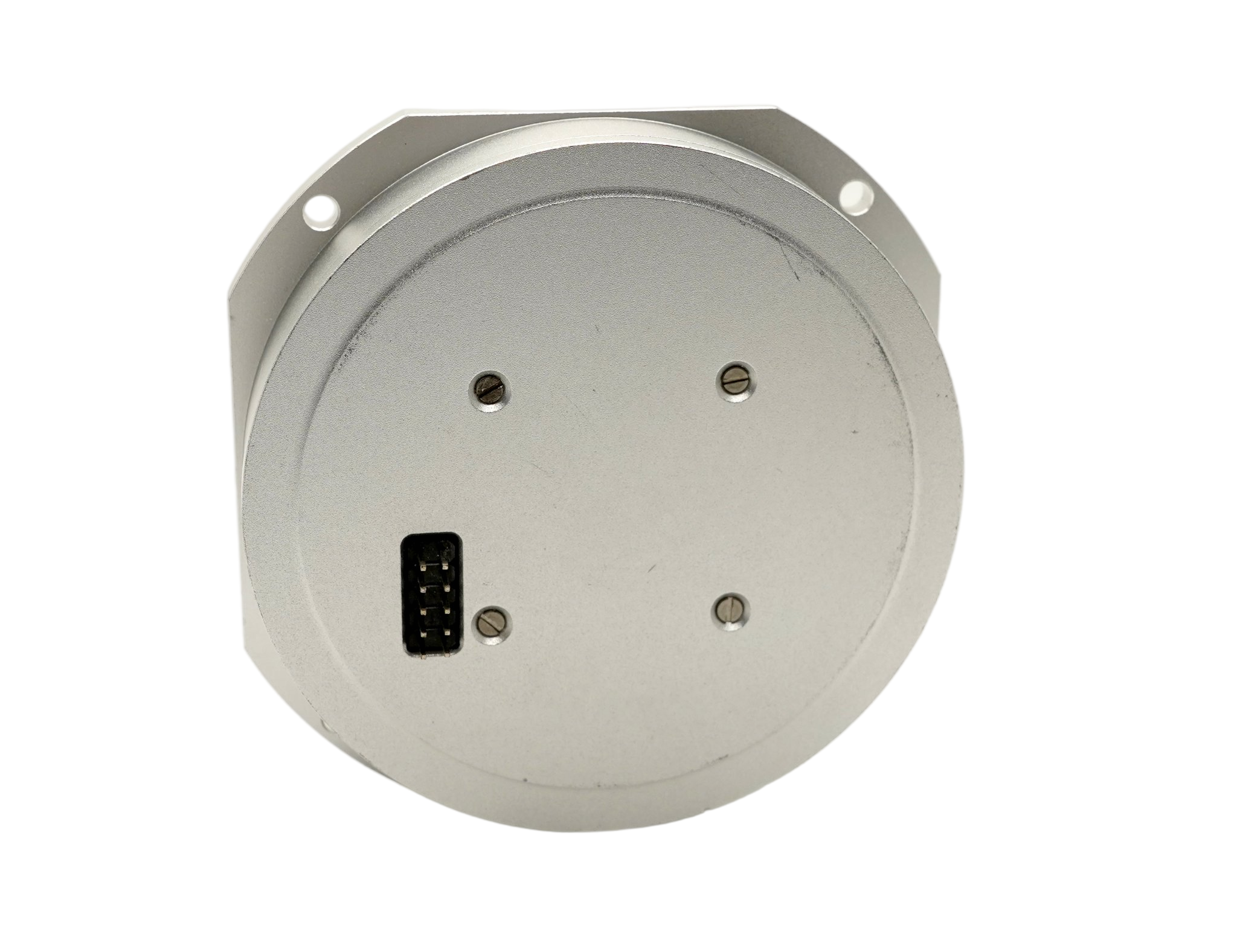

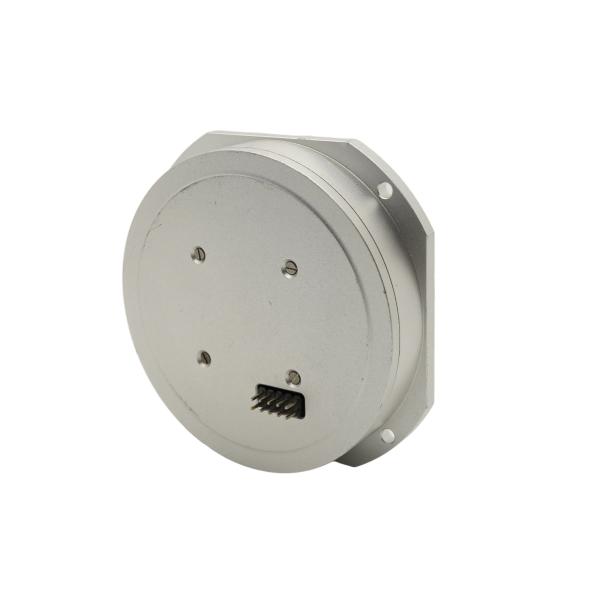

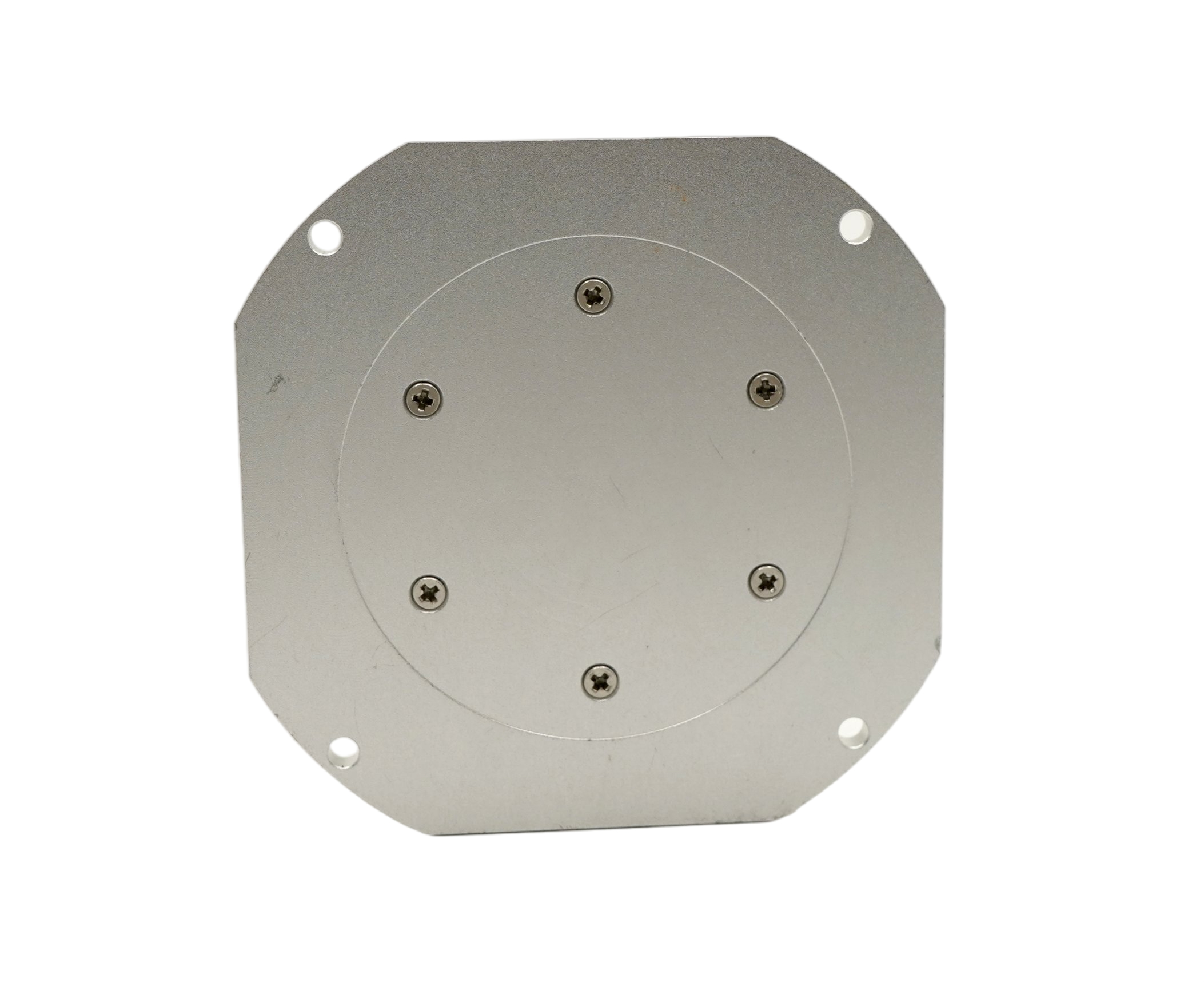

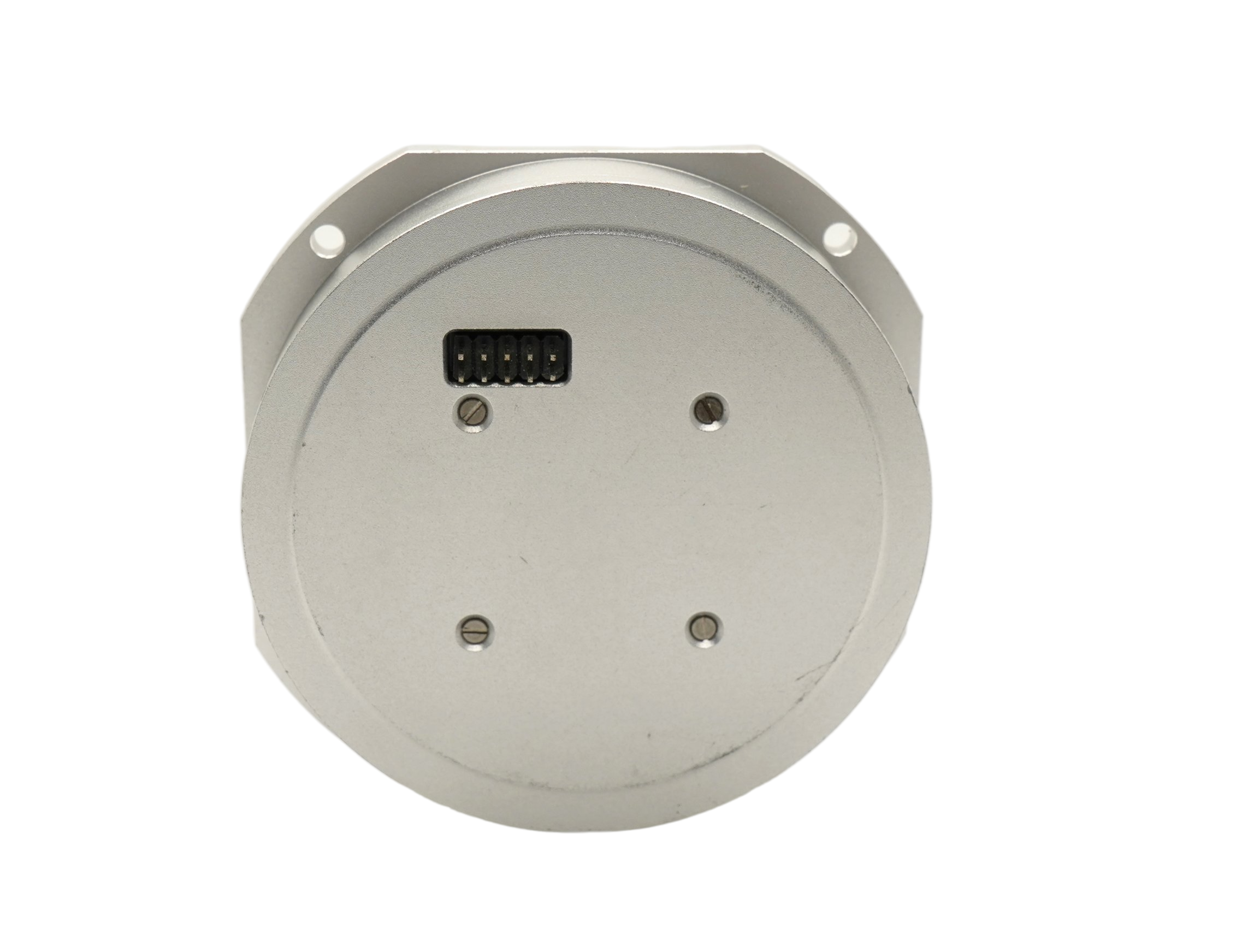

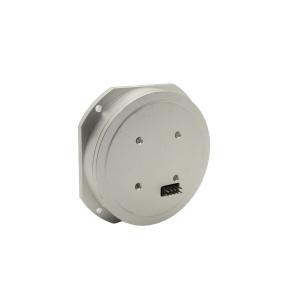

The MFOG-910 micro-nano fiber optic gyroscope is a high-precision angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes advanced micro-nano fiber components to detect, process, and feedback the phase difference between counter-propagating light beams.
With a compact structure (82 × 82 × 19.5 mm) and lightweight design (≤150 g), it features high stability, no moving parts, fast startup, and wide temperature adaptability (-40°C to +70°C).
Applications: Suitable for UAV attitude control, vehicle navigation, ship stabilization, and aerospace orientation measurement.

The product is mainly composed of the following components:

A) an optical path assembly,

B) Detection and control signal circuit board,

C) Optical fiber coil skeleton, shell and other structural parts,

4.3 Appearance and dimension

The overall dimension of the product is 82mm × 82mm × 19.5mm (without plug).

Weight

≤150g.

4.5 Operating temperature

-40℃~+70℃.

4.6 Storage temperature

-55℃~+85℃.

4.7 Random vibration

Random vibration level: 20g, frequency range: 20Hz ~ 2000Hz.

Main Performance Parameters
